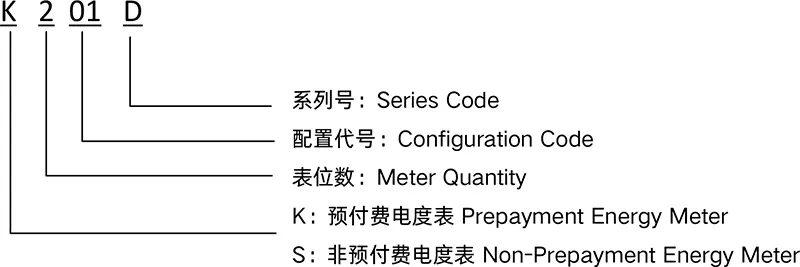

Model and Meaning

Product Model and Main Configuration
| Model | Configuration Location | Name | Specification | Quantity |
| K201D | Main Control Switch Configuration | Molded Case Circuit Breaker | CDMK-125C/2300 100A | 1 |
| K201D | Pre-Meter Configuration | Isolating Switch | CDGK-100/2P-80A CDGK-125/2P-100A(Optional) |
1 |
| K201D | Pre-Meter Configuration | Terminal Block | FJ6/JTS2-35/2*10 | 2 |
| K201D | Post-Meter Configuration | Miniature Circuit Breaker | CDBK-63/2P-63A CDBK-1P+N 32A/63A(Optional) |
2 |
| K201D | Meter Compartment Configuration | Conductor | BV6mm²/10mm² | / |

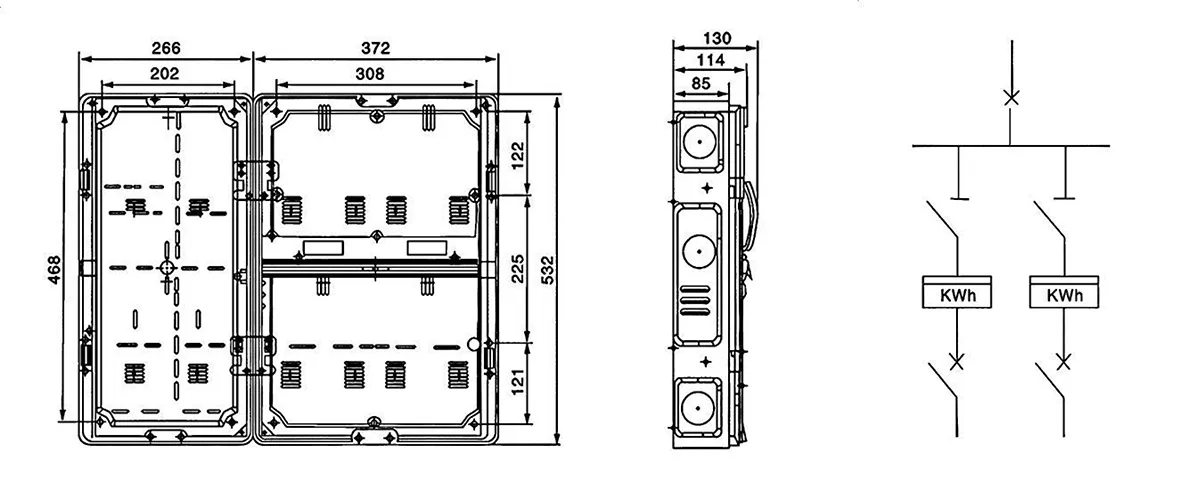

Installation Dimension Drawing, Wiring Diagram
