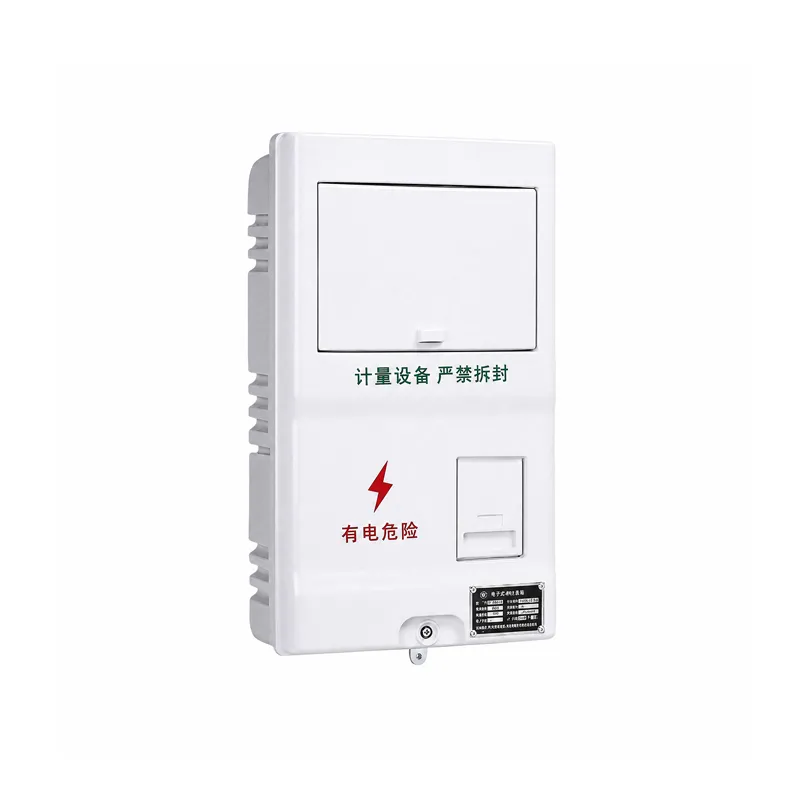

PXD101 New State Grid Single-Phase Single-Meter Energy Metering Box

The PXD101 is a state-of-the-art single-phase energy metering box designed in accordance with the latest State Grid standards. Engineered for single-meter installations, it provides a secure and reliable enclosure for residential, commercial, and utility metering applications, ensuring accurate energy measurement and efficient power distribution.

Request a quote

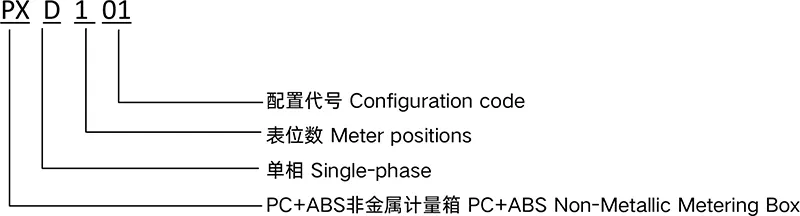

Model and Meaning

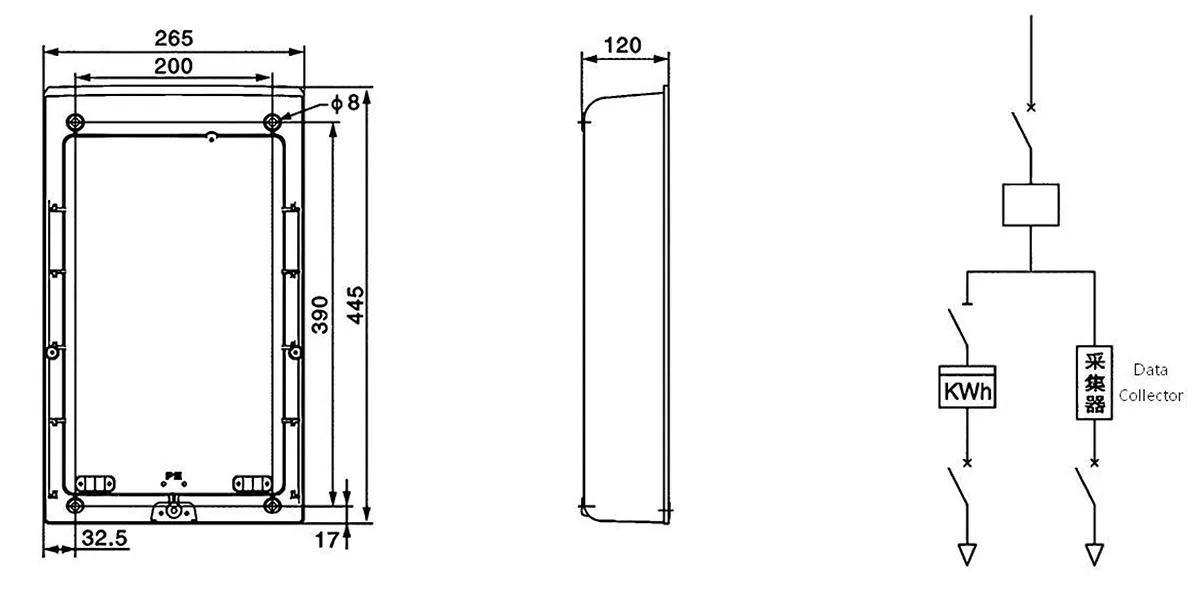

Product Model and Main Configuration

Model	Configuration Location	Name	Specification	Quantity
PXD101/1	Before-meter Configuration	Isolating Switch	CDGK-100/2P-80A CDGK-125/2P-100A(Optional) CDGK-100/2P-80A CDGK-125/2P-100A (Optional)	1
	After-meter Configuration	Miniature Circuit Breaker	CDBK-63/2P-63A CDBK-1P+N 32A/63A(Optional) CDBK-63/2P-63A CDBK-1P+N 32A/63A(Optional)	1
	Meter Chamber Configuration	Wire	BV 10mm²/16mm²	/
	Meter Chamber Configuration	Connector	YD-D160A(Optional) YD-D1 60A(Optional)	1
