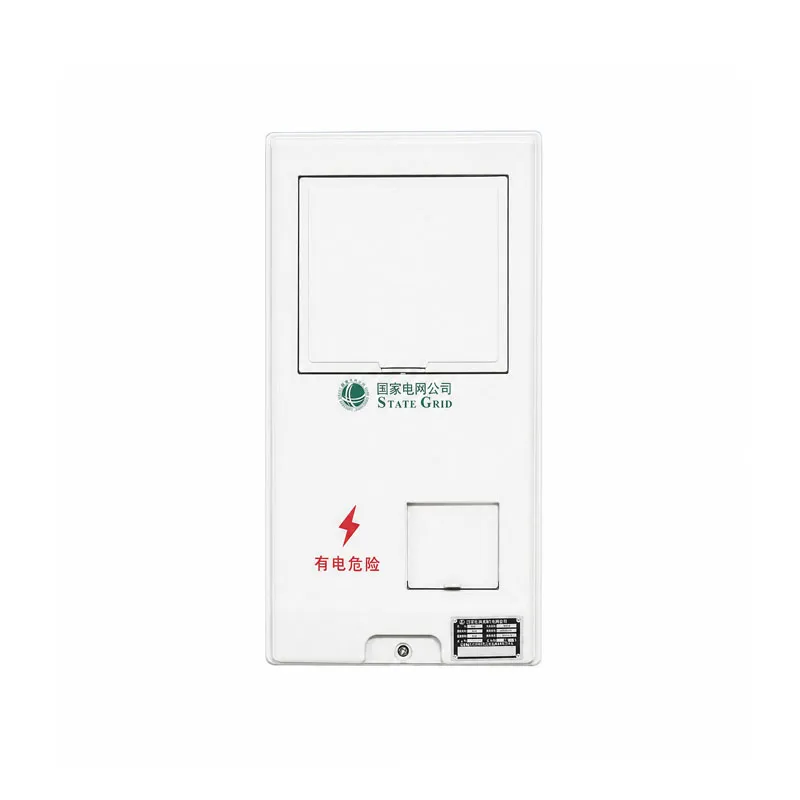

SXD101X SMC Single-Phase One-Meter Energy Metering Box

The SXD101X/SMC is a compact single-phase energy metering box designed for single-meter installations. Engineered for individual residential units, small commercial storefronts, and standalone utility metering points, it provides a secure, organized, and reliable metering solution that ensures accurate energy measurement and efficient power distribution for a single user.

Request a quote

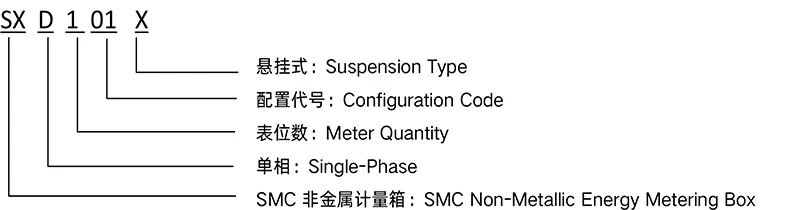

Model and Meaning

Product Model and Main Configuration

Model	Configuration Location	Name	Specification	Quantity
SXD101X/1	Pre-Meter Configuration	Isolating Switch	CDGK-100/2P-80A CDGK-125/2P-100A(Optional)	1
	Post-Meter Configuration	Miniature Circuit Breaker	CDBK-63/2P-63A CDBK-1P+N 32A/63A(Optional)	1
	Meter Compartment Configuration	Conductor	BV 10mm²/16mm²	/
	Meter Compartment Configuration	Connector	YD-D160A(Optional)	1
