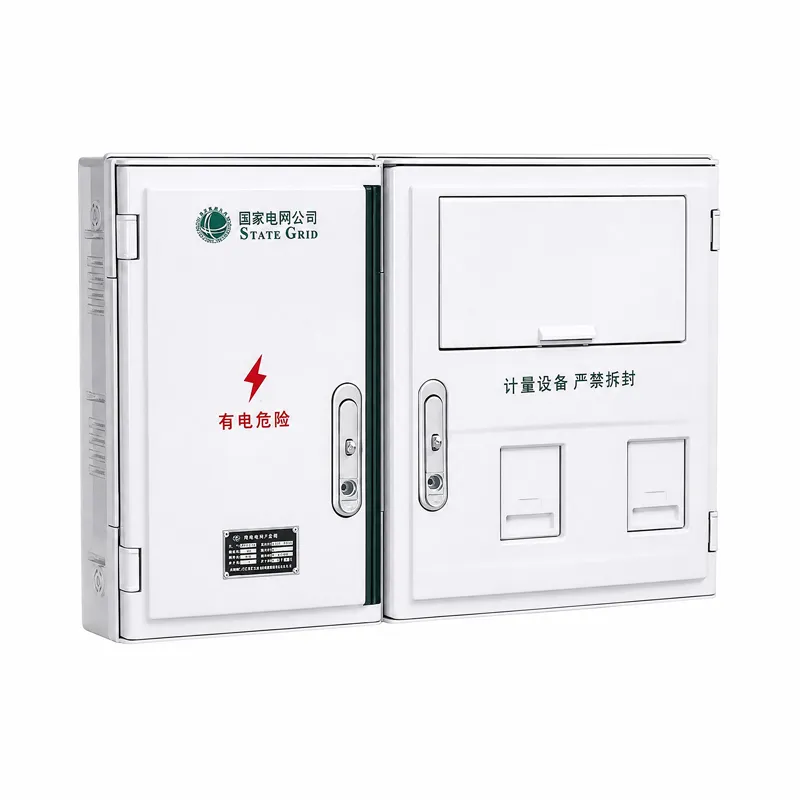

PXD201 New State Grid Single-Phase Two-Meter Energy Metering Box

The PXD201 is a compact single-phase energy metering box designed to accommodate two single-meter installations in a single enclosure. Engineered in compliance with the latest State Grid standards, it provides a secure, organized, and reliable metering solution for duplexes, small multi-unit residential buildings, and commercial facilities, ensuring accurate energy measurement and efficient power distribution across two individual tenants or units.

Request a quote

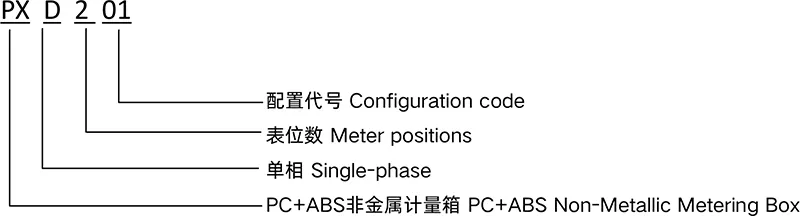

Model and Meaning

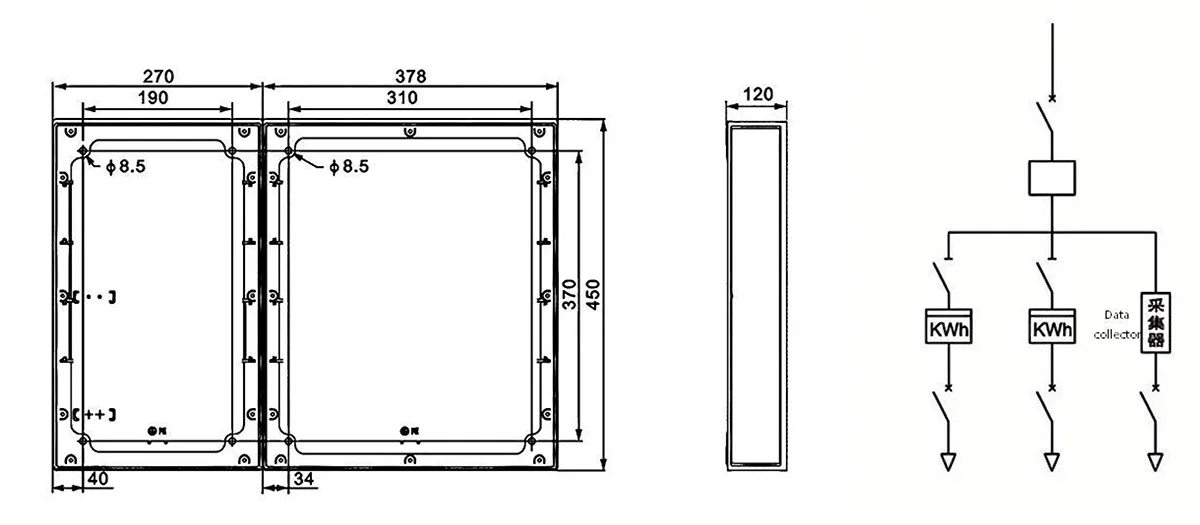

Product Model and Main Configuration

Model	Configuration Location	Name	Specification	Quantity
PXD201/1	Main Control Configuration	Molded Case Circuit Breaker	CDMK-125C/2300 100A	1
	Pre-Meter Configuration	Isolating Switch	CDBK-63/2P-63A CDBK-1P+N 32A/63A(Optional)	2
	Post-Meter Configuration	Miniature Circuit Breaker	CDBK-100/2P-63A CDBK-1P+N 32A/63A(Optional)	2
	Meter Compartment Configuration	Wire	BV 10mm²/16mm²	/
	Meter Compartment Configuration	Connector	YD-D160A(Optional)	2
