K901DX Single-Phase Nine-Meter Energy Metering Box

Switchgear Cabinets

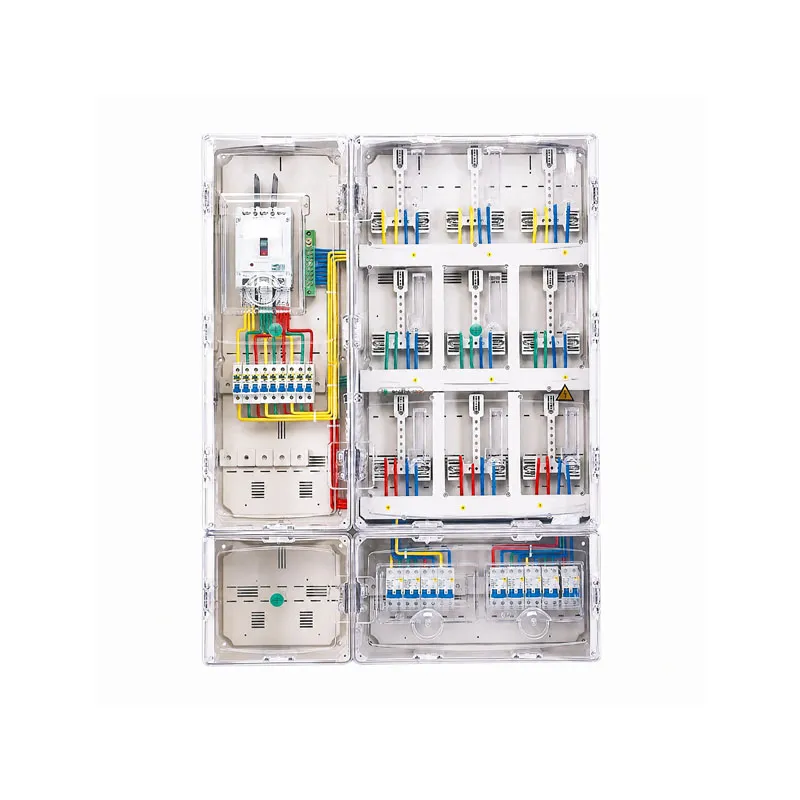

K901DX Single-Phase Nine-Meter Energy Metering Box

The K901DX is a compact single-phase energy metering box designed to accommodate up to nine single-meter installations in a single enclosure. Engineered for multi-unit residential buildings, apartment complexes, and commercial facilities, it provides a secure, organized, and reliable metering solution that ensures accurate energy measurement and efficient power distribution across multiple tenants or units.

Request a quote

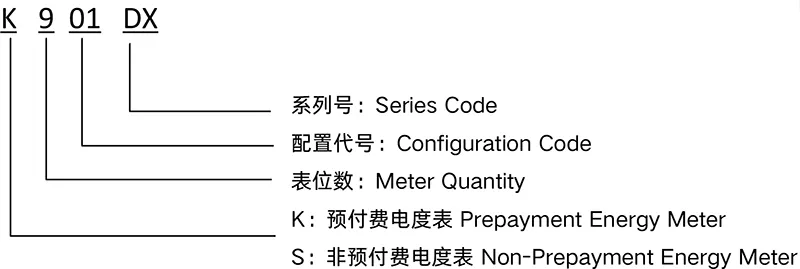

Model and Meaning

Product Model and Main Configuration

Model Configuration Location Name Specification Quantity
K901DX Main Control Switch Configuration Circuit Breaker CDMK-250C/3300 160A 1
Pre-Meter Configuration Isolating Switch CDGK-100/1P-63A
CDGK-125/1P-100A(Optional)		 9
Post-Meter Configuration Miniature Circuit Breaker CDBK-63/2P-63A
CDBK-1P+N 32A/63A(Optional)		 9
Pre-Meter Configuration Neutral Terminal FJ6/JHD-1/b 1
Meter Compartment Configuration PE Terminal FJ6NB-100/9×25 1
Meter Compartment Configuration Conductor BV 6mm²/10mm² /
Data Collector Configuration Collector Circuit Breaker CDBK-63/2P-63A(Optional) 1
Data Collector Configuration Collector Connector YD-D1 C(Optional) 1

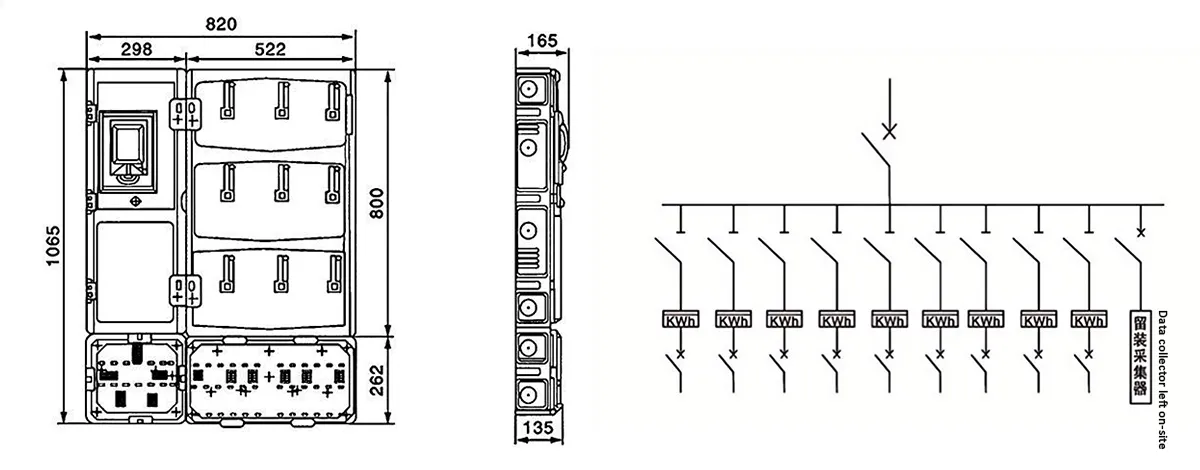

Installation Dimension Drawing, Wiring Diagram
