PXD901 New State Grid Single-Phase Nine-Meter Energy Metering Box

Switchgear Cabinets

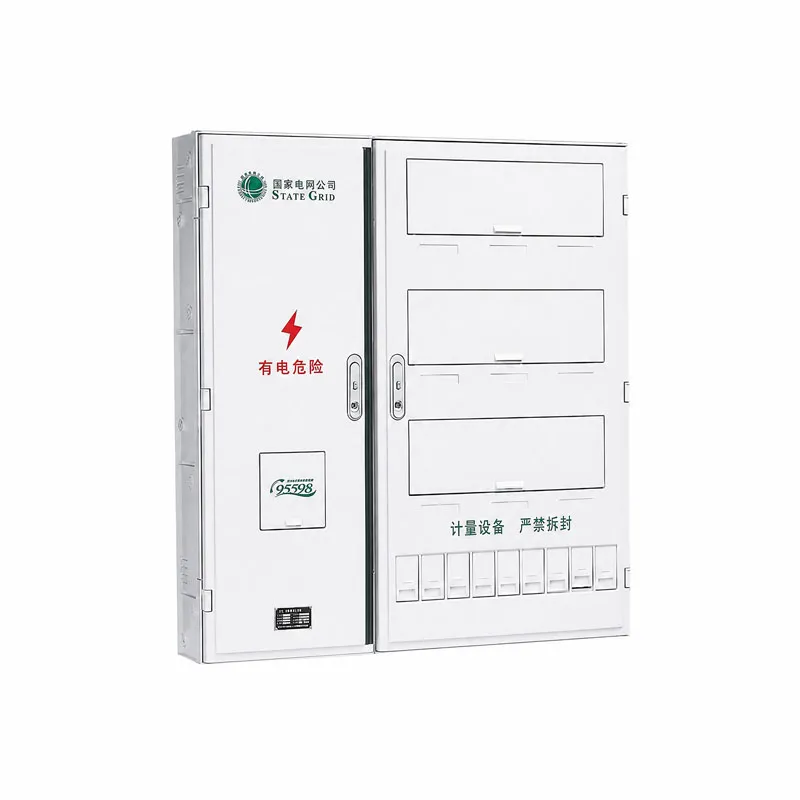

PXD901 New State Grid Single-Phase Nine-Meter Energy Metering Box

The PXD901 is a high-capacity single-phase energy metering box designed to accommodate up to nine single-meter installations in a single enclosure. Engineered in compliance with the latest State Grid standards, it provides a secure, organized, and reliable metering solution for multi-unit residential buildings, apartment complexes, and commercial facilities, ensuring accurate energy measurement and efficient power distribution across multiple tenants or units.

Request a quote

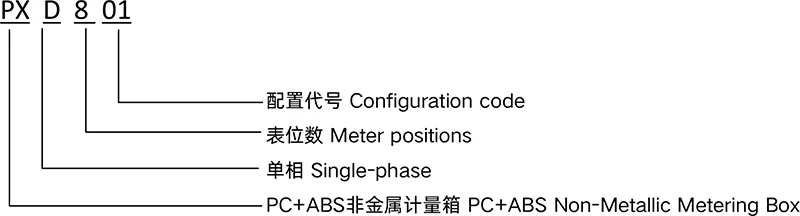

Model and Meaning

Product Model and Main Configuration

Model Configuration Location Name Specification Quantity
PXD901/1 Main Control Configuration Molded Case Circuit Breaker CDMK-250C/3300 200A 1
Pre-Meter Configuration Isolating Switch CDGK-100/2P-80A、CDGK-125/1P-100A(Optional) 9
Post-Meter Configuration Miniature Circuit Breaker CDBK-63/2P-63A、CDBK-1P+N 32A/63A(Optional) 9
Pre-Meter Configuration Switch Terminal FJ6G-250/4×25 3
Pre-Meter Configuration Neutral Terminal FJ6/JHD-1/b 1
Meter Compartment Configuration Conductor BV10mm²/16mm² /
Meter Compartment Configuration PE Terminal FJ6NB-100/9×25 1
Meter Compartment Configuration Connector YD-D160A(Optional) 9
Surge Configuration Surge Protection Switch CDBK-63/4P-63A(Optional) 1
Surge Configuration Surge Protector Device YCD1-4P-40KA(Optional) 1
Data Collector Configuration Collector Circuit Breaker CDBK-63/2P-63A(Optional) 1
Data Collector Configuration Collector Connector YD-D1C(Optional) 1

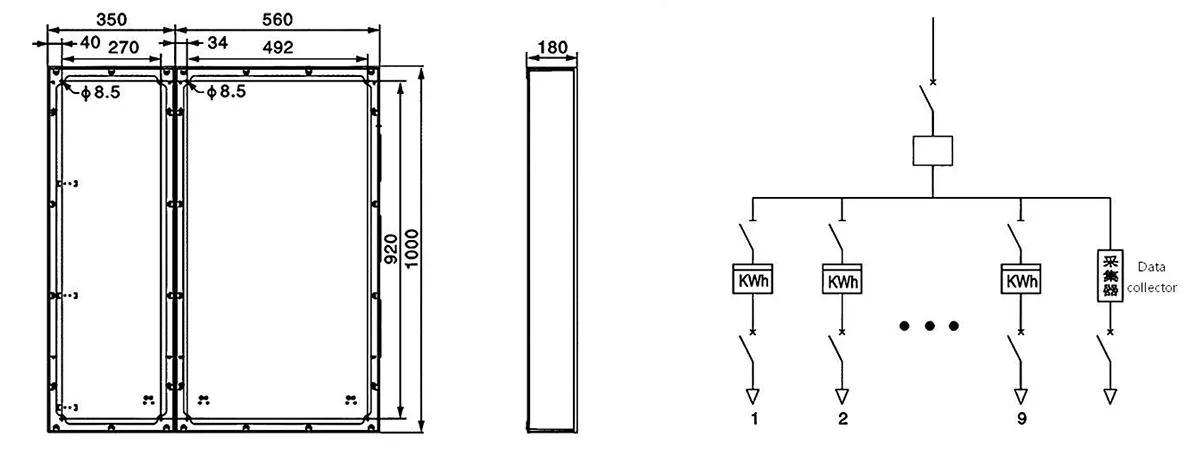

Installation Dimension Drawing, Wiring Diagram
