JDZC-6、10 Voltage Transformer

Instrument Transformers

JDZC-6、10 Voltage Transformer

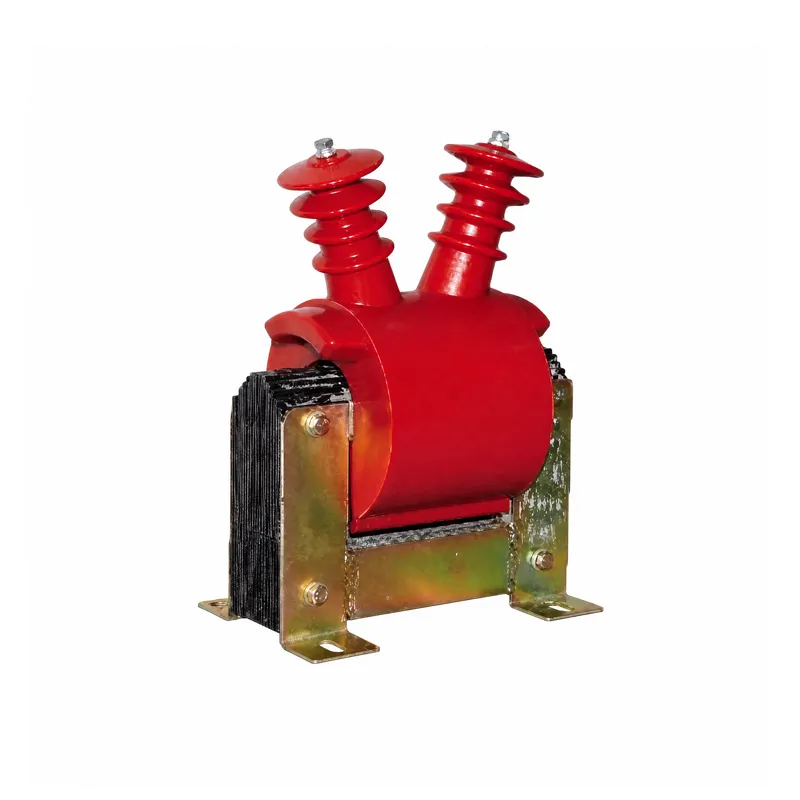

The JDZC-6 and JDZC-10 are high-precision indoor voltage transformers designed for 6kV and 10kV medium-voltage power systems. They deliver reliable voltage measurement and protection signal conversion for switchgear, metering cabinets, and distribution panels, making them ideal for utility substations, industrial facilities, and commercial power installations.

Request a quote

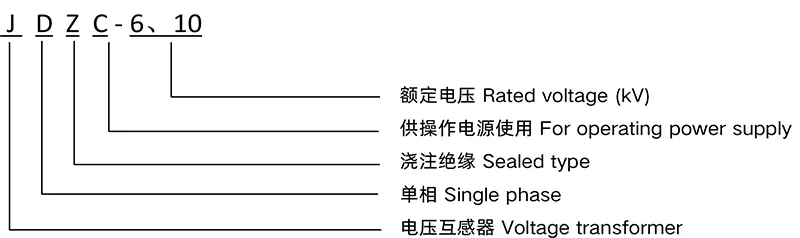

Model and Meaning

Technical Parameters

Type Rated voltage ratio (V) Rated secondary output (VA) Max.output (VA) Rated insulation level (kV)
JDZC-6
JDZC-10		 6000/100/220
10000/100/220		 0.2/3—30/300
0.5/3—50/300		 500
700		 7.2/32/60
12/42/75
0.2/3—30/400
0.5/3—50/400		 800
1000
0.2/3—50/1000
0.5/3—80/1000		 2000
0.2/3—50/1500
0.5/3—80/1500		 3000

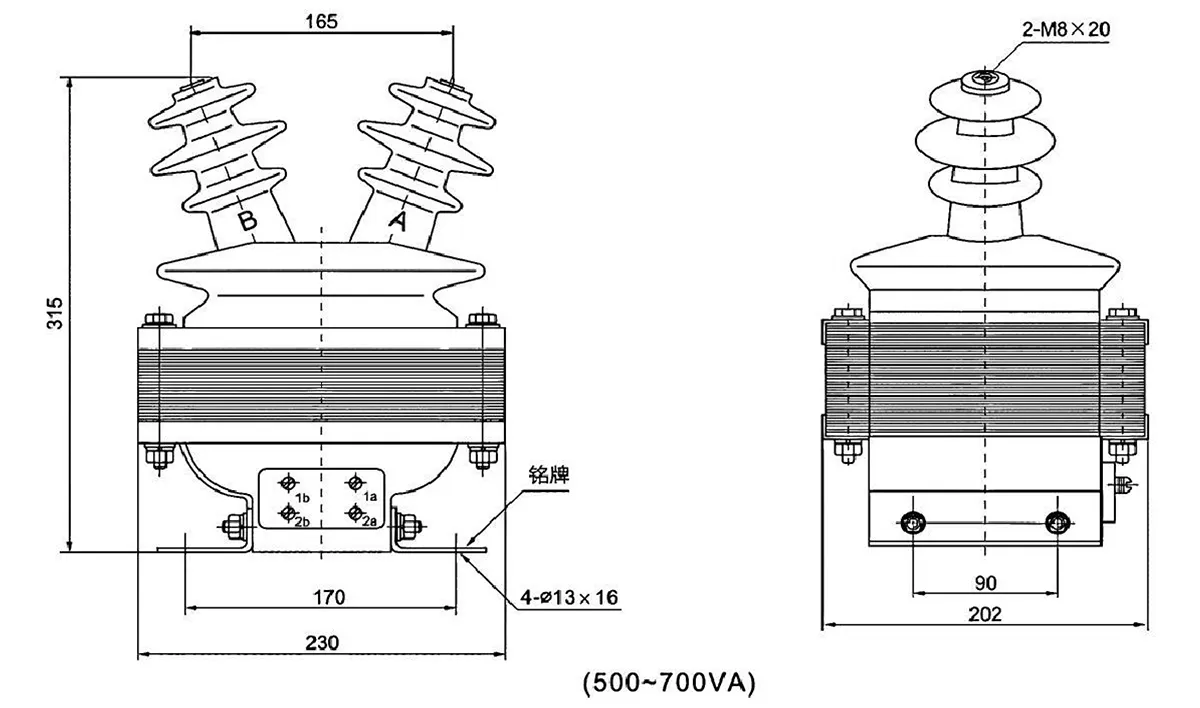

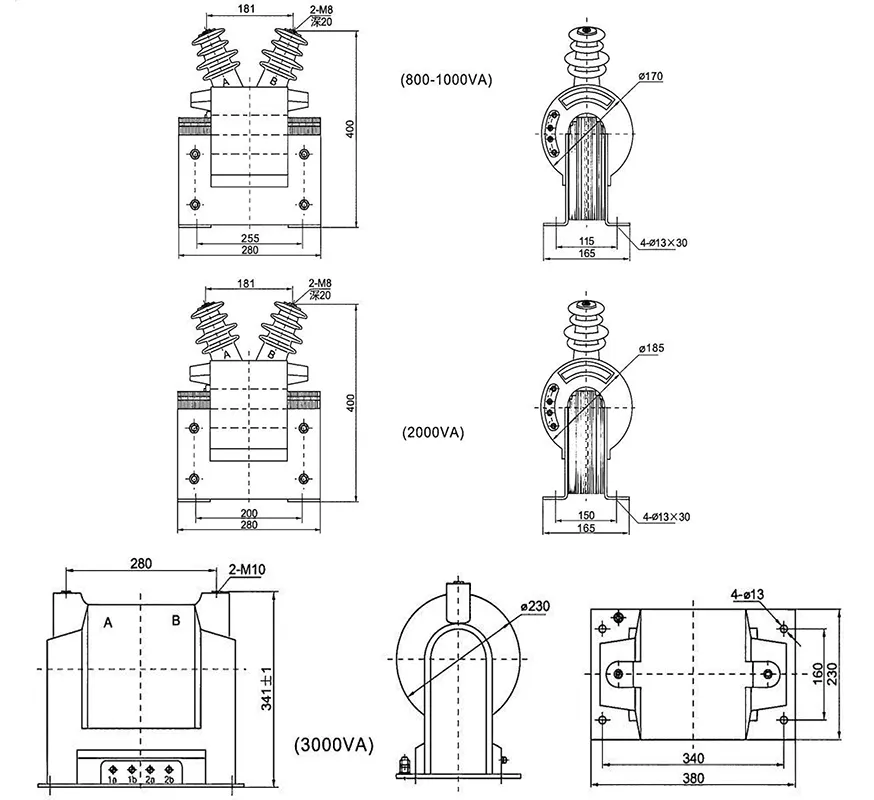

Overall Dimension Drawing

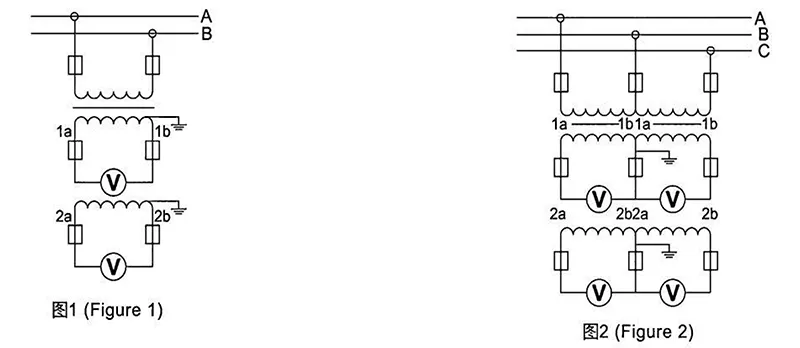

Wiring Diagram
