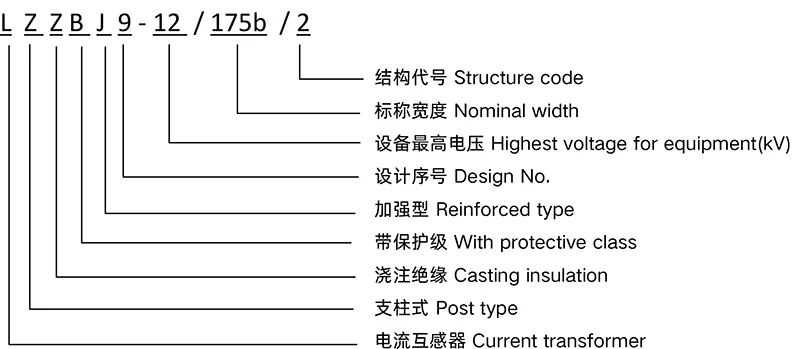

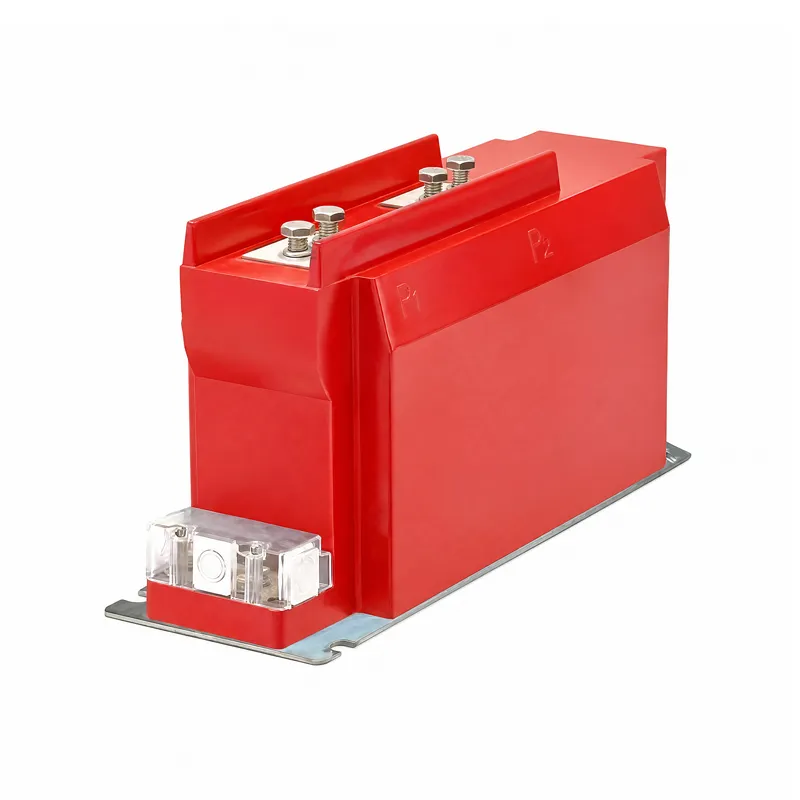

Model and Meaning
Technical Parameters
| Rated primary current (A) | Accuracy classes combination | Rated secondary output (VA) | Rated shorttime thermal current (kA/s) | Rated dynamic current (kA) | ||||
| 0.2S | 0.2 | 0.5 | 10P10 | 10P15 | ||||
| 5 | 0.2(S)/10P10 0.2(S)/10P15 0.5/10P10 0.5/10P15 |
10 | 10 | 15*,20 | 20 | 20 | 0.3 | 0.75 |
| 10 | 0.6 | 1.5 | ||||||
| 15 | 0.9 | 2.25 | ||||||
| 20 | 1.2 | 3 | ||||||
| 25 | 1.5 | 3.75 | ||||||
| 30 | 1.8 | 4.5 | ||||||
| 40 | 2.4 | 6 | ||||||
| 50 | 3 | 7.5 | ||||||
| 75 | 4.5 | 11.25 | ||||||
| 100 | 6 | 15 | ||||||
| 150 | 9 | 22.5 | ||||||
| 200 | 12 | 30 | ||||||
| 300 | 20 | 30 | 18 | 45 | ||||
| 400 | 24 | 60 | ||||||
| 500 | 30 | 75 | ||||||
| 600 | 36 | 90 | ||||||
| 800 | 48 | 120 | ||||||
| 1000 | 15 | 60 | 130 | |||||
| 1200 | 60 | 130 | ||||||
| 1500-3000 | 30 | 60 | 30 | 80 | 160 | |||
Note:The data marked with* in the table are parameters for class combination 0.5 and 10P15

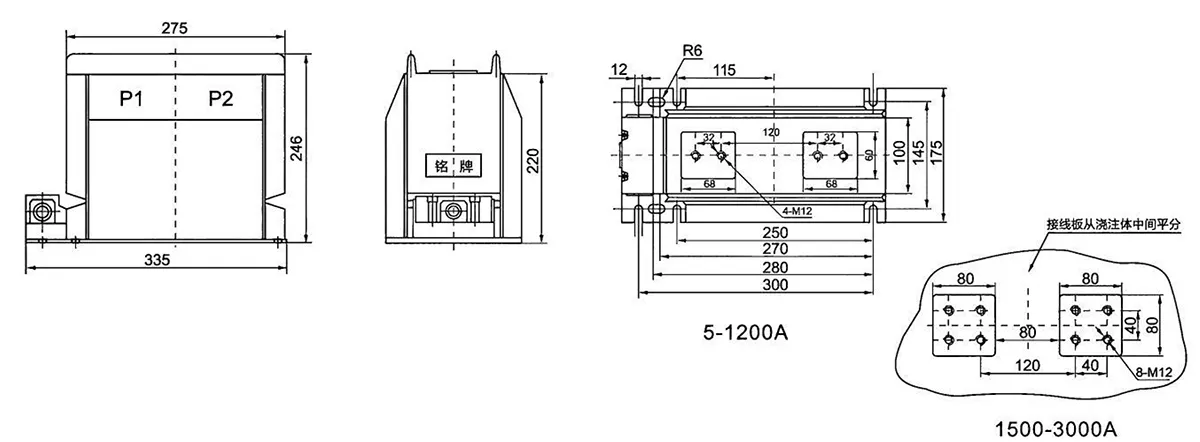

Overall Dimension Drawing
