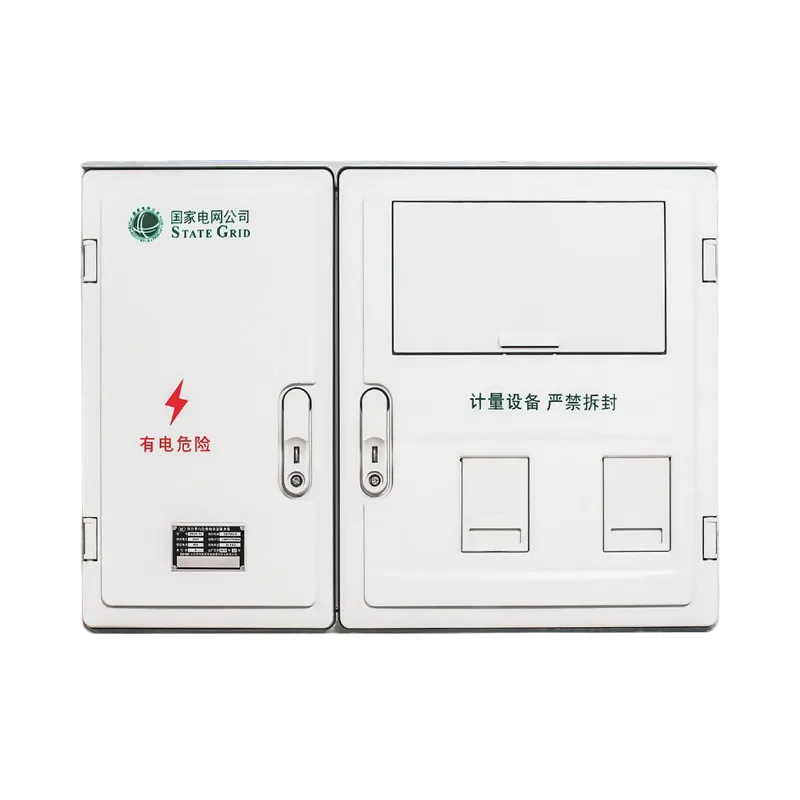

SXD201XSMC Single-Phase Two-Meter Energy Metering Box

Switchgear Cabinets

SXD201XSMC Single-Phase Two-Meter Energy Metering Box

The SXD201X/SMC is a compact single-phase energy metering box designed to accommodate up to two single-meter installations in a single enclosure. Engineered for small multi-unit residential buildings, duplexes, and commercial facilities, it provides a secure, organized, and reliable metering solution that ensures accurate energy measurement and efficient power distribution across two individual tenants or units.

Request a quote

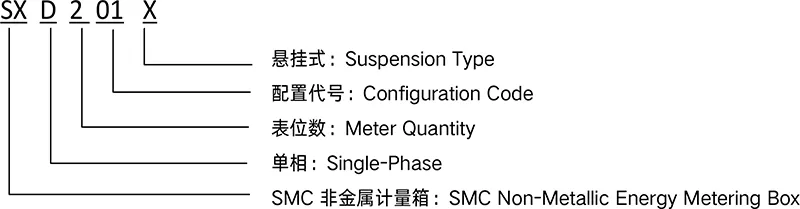

Model and Meaning

Product Model and Main Configuration

Model Configuration Location Name Specification Quantity
SXD201X/1 Main Control Configuration Molded Case Circuit Breaker CDMK-125C/2300 100A 1
Pre-Meter Configuration Isolating Switch CDGK-100/2P-80A
CDGK-125/2P-100A(Optional)		 2
Post-Meter Configuration Miniature Circuit Breaker CDBK-63/2P-63A
CDBK-1P+N 32A/63A(Optional)		 2
Meter Compartment Configuration Conductor BV 10mm²/16mm² 1
Meter Compartment Configuration Connector YD-D160A(Optional) 2

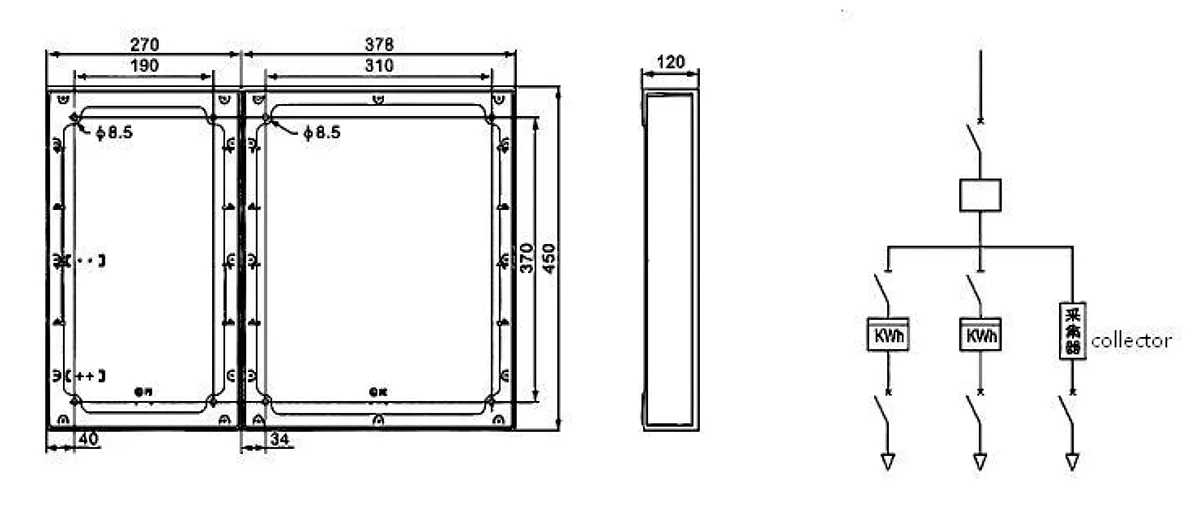

Installation Dimension Drawing, Wiring Diagram
