Product Overviews

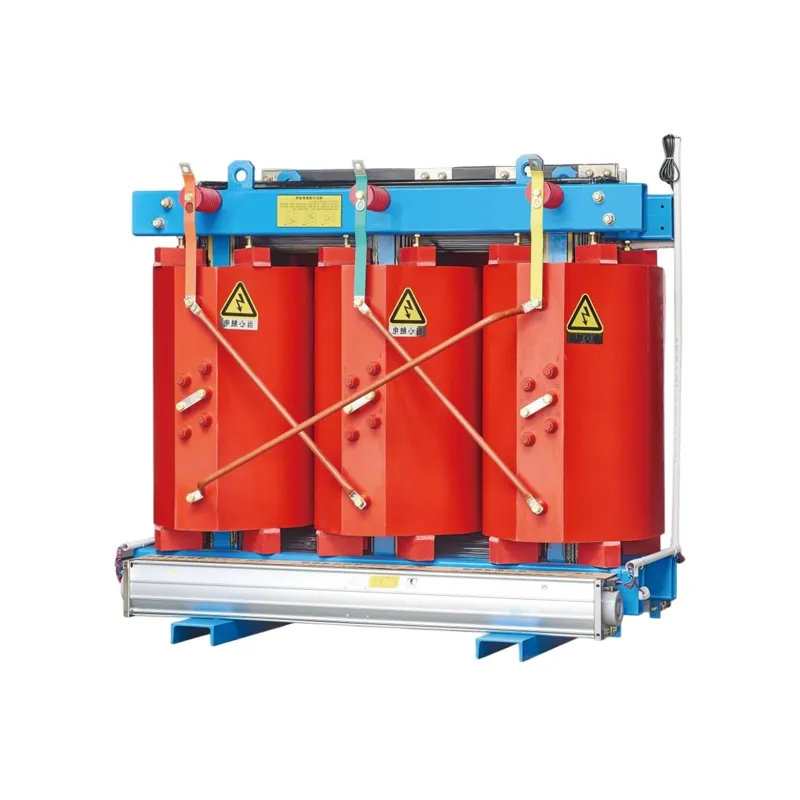

Resin-insulated dry-type transformers feature high safety, flame retardancy and zero pollution, and can be installed directly at load centers. They are maintenance-free and easy to install, with low overall operating cost and power loss. Thanks to excellent moisture resistance, the transformers operate reliably at 100% relative humidity, and can be restarted without pre-drying after shutdown.With low partial discharge, low noise and outstanding heat dissipation, they can run at 150% rated load under forced air cooling. A complete temperature protection & control system is equipped to ensure secure operation, delivering high operational reliability.

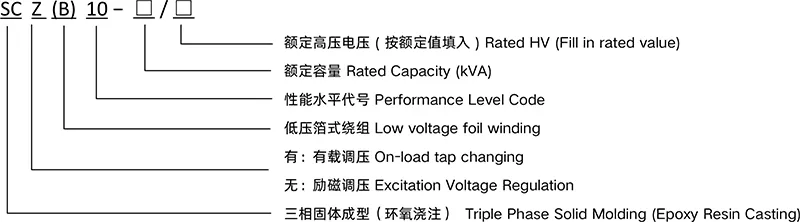

Model and Meaning
Product Features
- Low loss, energy-saving with low operating cost
- Flame-retardant, fire & explosion proof, eco-friendly
- Excellent moisture resistance and heat dissipation
- Low partial discharge, low noise, maintenance-free
- High mechanical strength, strong short-circuit resistance, long service life
Technical Parameters
35kV Class Off-Circuit Tap-Changing Distribution Dry-type Transformer
| Rated Capacity (kVA) | Voltage Combinationed Tap Range | Vector Group Symbol | No-load Loss (W) | Load Loss(W) | No-load Current % | Impedance Voltage % | ||||
| HV(kV) | HV Tap Range % | LV(kV) | 130℃(B)100℃ | 155℃(F)120℃ | 180℃(H)145℃ | |||||
| 50 | 35 ~ 38.5 |
±2×2.5 ±5 |
0.4 | Dyn11 Yyn0 |
450 | 1340 | 1420 | 1520 | 2.3 | 6.0 |
| 100 | 630 | 1970 | 2090 | 2230 | 2.0 | |||||
| 160 | 790 | 2650 | 2810 | 3000 | 1.5 | |||||
| 200 | 880 | 3130 | 3320 | 3550 | 1.5 | |||||
| 250 | 990 | 3580 | 3800 | 4060 | 1.3 | |||||
| 315 | 1170 | 4250 | 4510 | 4820 | 1.3 | |||||
| 400 | 1370 | 5100 | 5410 | 5790 | 1.1 | |||||
| 500 | 1520 | 5270 | 6650 | 7110 | 1.1 | |||||
| 630 | 1860 | 7250 | 7690 | 8230 | 1.0 | |||||
| 800 | 2160 | 8500 | 9120 | 9760 | 1.0 | |||||
| 1000 | 2430 | 9860 | 10400 | 11100 | 0.75 | |||||
| 1250 | 2830 | 12000 | 12700 | 13600 | 0.75 | |||||
| 1600 | 3240 | 14600 | 15400 | 16500 | 0.75 | |||||
| 2000 | 3820 | 17200 | 18200 | 19500 | 0.75 | |||||
| 2500 | 4450 | 20600 | 21800 | 23300 | 0.75 | |||||
35kV Class Off-Circuit Tap-Changing Power Transformer
| Rated Capacity (kVA) | Voltage Combinationed Tap Range | Vector Group Symbol | No-load Loss (W) | Load Loss(W) | No-load Current % | Impedance Voltage % | ||||
| HV(kV) | HV Tap Range % | LV(kV) | 130℃(B)100℃ | 155℃(F)120℃ | 180℃(H)145℃ | |||||
| 800 | 35~ 38.5 |
±2×2.5 ±5 |
3.15 6 6.3 10 10.5 11 |
Dyn11 Yd11 Yyn0 |
2250 | 8870 | 9400 | 10000 | 0.95 | 6.0 |
| 1000 | 2670 | 10300 | 10900 | 11600 | 0.95 | |||||
| 1250 | 3130 | 12100 | 12900 | 13800 | 0.85 | |||||
| 1600 | 3690 | 14600 | 15400 | 16500 | 0.85 | |||||
| 2000 | 4230 | 17200 | 18200 | 19500 | 0.75 | 7.0 | ||||
| 2500 | 4860 | 20600 | 21800 | 23300 | 0.75 | |||||
| 3150 | 6030 | 23100 | 24500 | 26200 | 0.7 | 8.0 | ||||
| 4000 | 7020 | 27700 | 29400 | 31500 | 0.7 | |||||
| 5000 | 8370 | 32900 | 34900 | 37400 | 0.6 | |||||
| 6300 | 9900 | 38500 | 40800 | 43700 | 0.6 | |||||
| 8000 | 11300 | 43400 | 46000 | 49300 | 0.5 | 9.0 | ||||
| 10000 | 12900 | 52400 | 55500 | 59400 | 0.5 | |||||
| 12500 | 15700 | 60900 | 64600 | 69100 | 0.4 | |||||
| 16000 | 19300 | 71700 | 75000 | 81300 | 0.4 | |||||
| 20000 | 22900 | 80600 | 85500 | 91500 | 0.35 | 10.0 | ||||
35kV Class On-Load Tap-Changing Power Transformer
| Rated Capacity (kVA) | Voltage Combinationed Tap Range | Vector Group Symbol | No-load Loss (W) | Load Loss(W) | No-load Current % | Impedance Voltage % | ||||
| HV(kV) | HV Tap Range % | LV(kV) | 130℃(B)100℃ | 155℃(F)120℃ | 180℃(H)145℃ | |||||
| 2000 | 35 ~ 38.5 |
±4×2.5 | 6 6.3 10 10.5 11 |
Dyn11 Yd11 |
4500 | 17900 | 19000 | 20300 | 0.75 | 7.0 |
| 2500 | 5220 | 21300 | 22600 | 24200 | 0.75 | |||||
| 3150 | 6300 | 24000 | 25400 | 27200 | 0.7 | |||||
| 4000 | 7380 | 28700 | 30400 | 32600 | 0.7 | |||||
| 5000 | 8730 | 34000 | 36100 | 38600 | 0.6 | 8.0 | ||||
| 6300 | 10800 | 39400 | 41800 | 44700 | 0.6 | |||||
| 8000 | 11800 | 44800 | 47500 | 50800 | 0.5 | 9.0 | ||||
| 10000 | 13500 | 53900 | 57100 | 61200 | 0.5 | |||||
| 12500 | 16100 | 62700 | 66500 | 71100 | 0.4 | |||||
| 16000 | 20200 | 73800 | 78200 | 83700 | 0.4 | |||||
| 20000 | 23800 | 83000 | 88000 | 94200 | 0.35 | 10.0 | ||||
