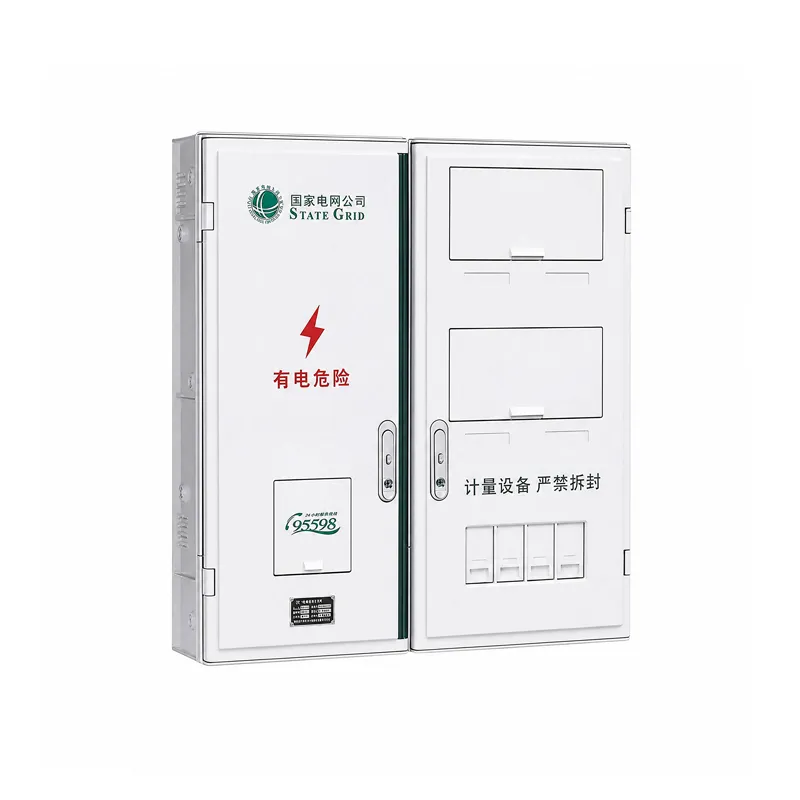

PXD601 New State Grid Single-Phase Six-Meter Energy MeteringBox

The PXD601 is a compact single-phase energy metering box designed to accommodate up to six single-meter installations in a single enclosure. Engineered in compliance with the latest State Grid standards, it provides a secure, organized, and reliable metering solution for multi-unit residential buildings, apartment complexes, and commercial facilities, ensuring accurate energy measurement and efficient power distribution across multiple tenants or units.

Request a quote

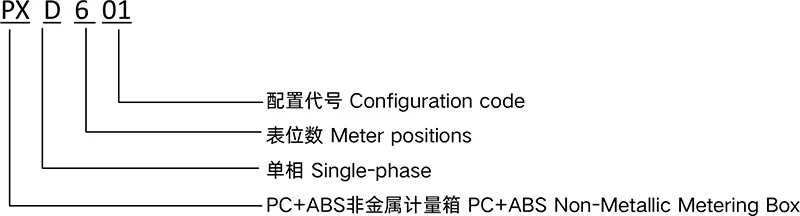

Model and Meaning

Product Model and Main Configuration

Model	Configuration Location	Name	Specification	Quantity
PXD601/1	Main Control Configuration	Molded Case Circuit Breaker	CDMK-125C/3300 125A	1
	Pre-Meter Configuration	Isolating Switch	CDGK-100/2P-80A、CDGK-125/1P-100A(Optional)	6
	Post-Meter Configuration	Miniature Circuit Breaker	CDBK-63/2P-63A、CDBK-1P+N 32A/63A(Optional)	6
	Pre-Meter Configuration	Switch Terminal	FJ6G-100/3×25	3
	Pre-Meter Configuration	Neutral Terminal	FJ6/JHD-1/a	1
	Meter Compartment Configuration	Conductor	BV10mm²/16mm²	/
	Meter Compartment Configuration	PE Terminal	FJ6NB-100/6×25	1
	Meter Compartment Configuration	Connector	YD-D160A(Optional)	6
	Surge Configuration	Surge Protection Switch	CDBK-63/4P-63A(Optional)	1
	Surge Configuration	Surge Protector Device	YCD1-4P-40KA(Optional)	1
	Data Collector Configuration	Collector Circuit Breaker	CDBK-63/2P-63A(Optional)	1
	Data Collector Configuration	Collector Connector	YD-D1C(Optional)	1
